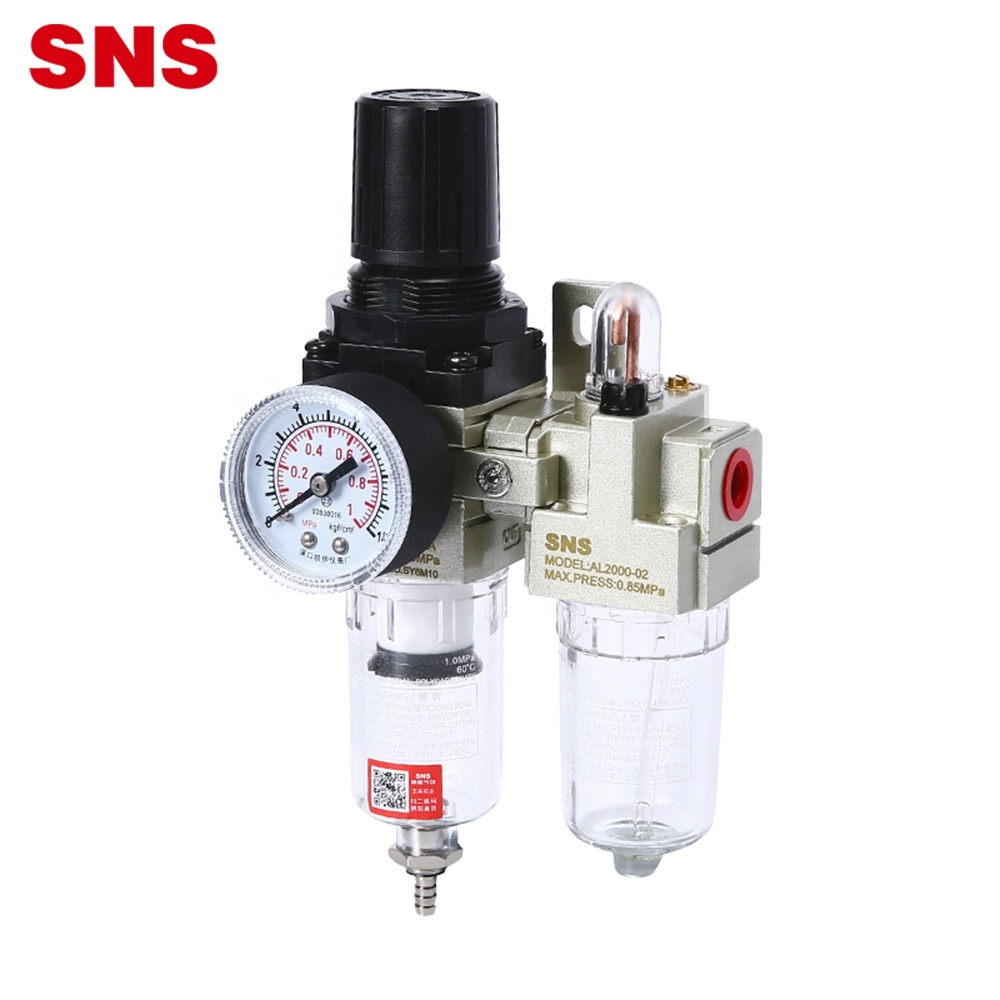

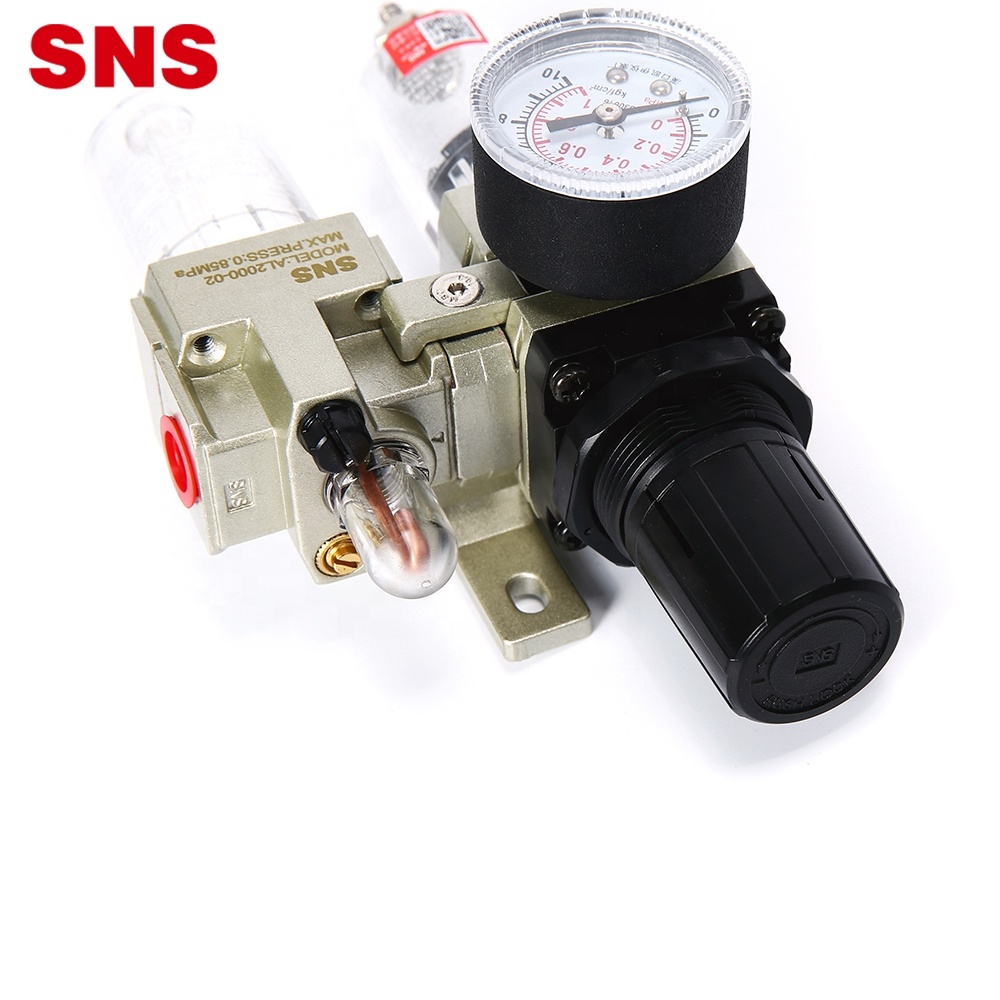

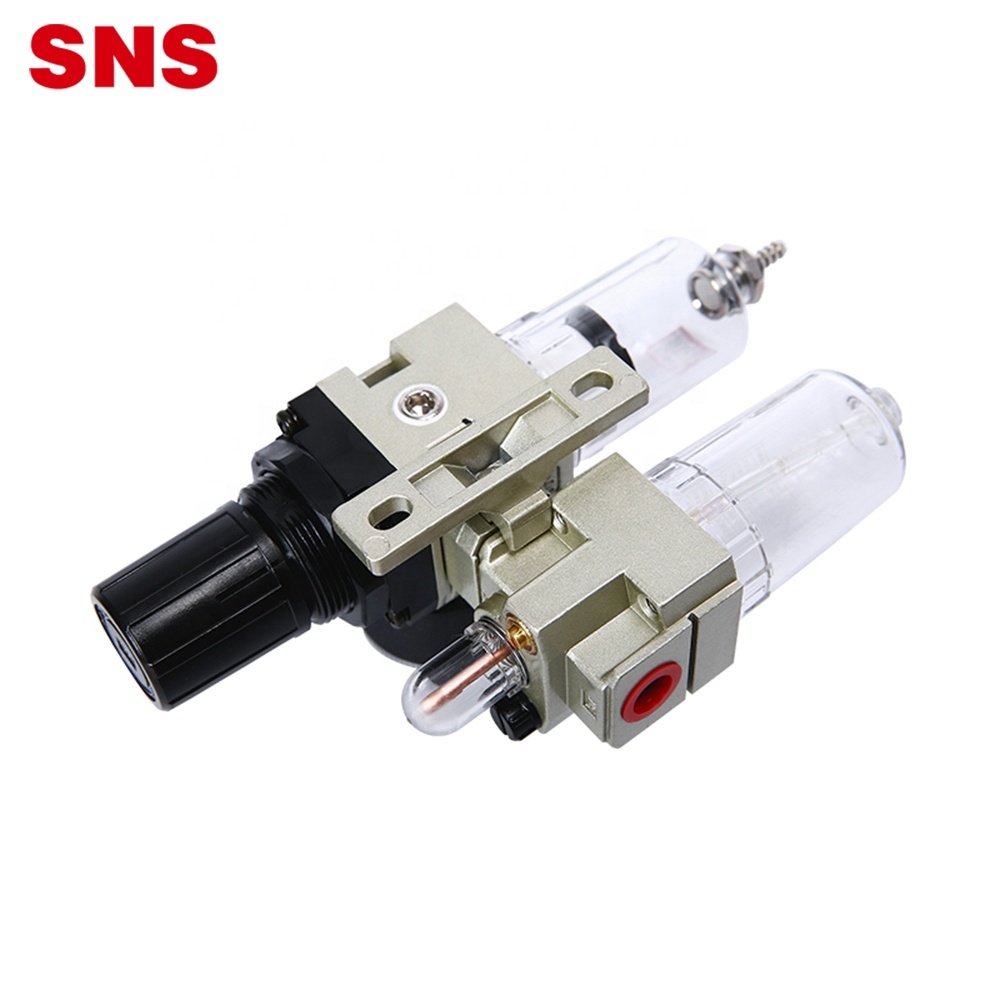

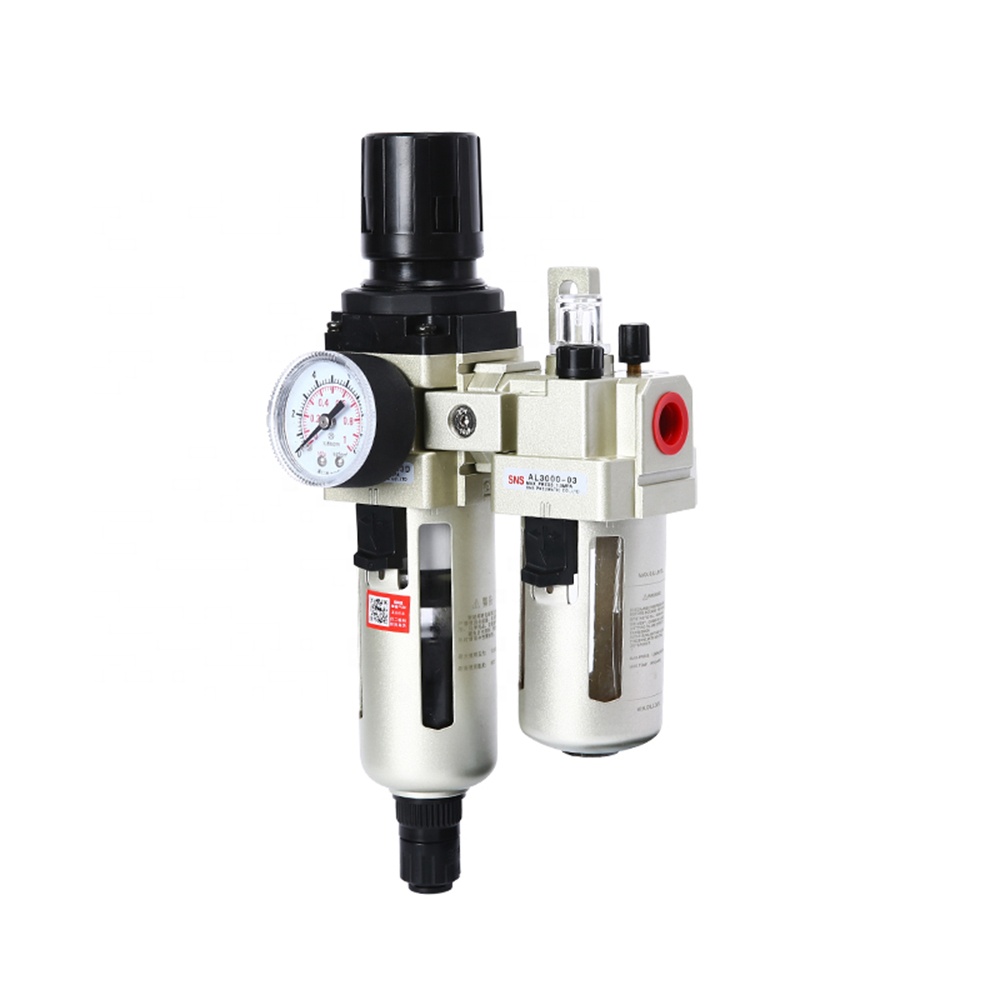

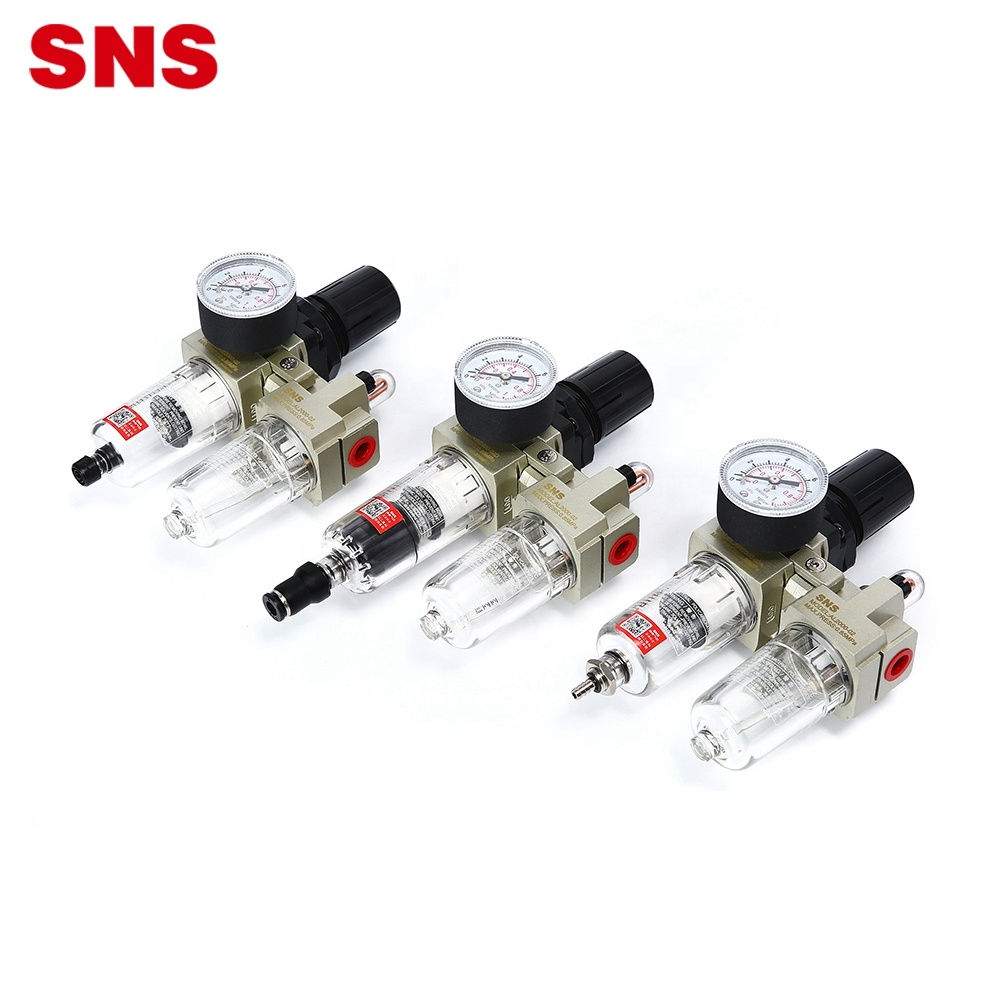

SNS AC Series atẹgun orisun orisun pneumatic ẹrọ FRL apapo lubricator olutọju atẹgun atẹgun

Apejuwe Kukuru:

1, Alabọde ti n ṣiṣẹ ti ẹrọ orisun orisun gaasi yẹ ki o lo afẹfẹ fifọ ati gbẹ, ati afẹfẹ ninu paipu yẹ ki o wa ni fifun ni kikun lati yago fun awọn alaimọ lati mu wa sinu eto naa ati ṣiṣe iṣẹ buburu ti awọn silinda ati awọn falifu. Awọ epo ninu eto fifi ọpa yẹ ki o wa ni lubricated. 2, Lẹhin ti oluṣeto orisun afẹfẹ ṣetọju iṣẹ deede ti eto naa, o jẹ dandan lati ṣayẹwo awọn ipo iṣẹ ti awọn asẹ afẹfẹ ati awọn iyọ epo ni igbagbogbo, ati lati jade ati mu epo ni akoko. 3, Nigbagbogbo ṣayẹwo iṣiṣẹ ti awọn oriṣiriṣi paati paati, ṣayẹwo boya awọn boluti fifẹ jẹ alaimuṣinṣin? Ṣe eyikeyi ibajẹ tabi jijo ninu edidi eroja naa? 4, Nigbati o ba n ṣetọju, o jẹ dandan lati ku orisun gaasi tẹlẹ ati sọ ofo afẹfẹ ti a rọ sinu ọna opo gigun ṣaaju ṣiṣe iṣẹ itọju. 5, Awọn paati gbọdọ wa ni ti mọtoto nigbati o ba tunṣe ati tun ṣe apejọ, ati pe awọn idoti ko gbọdọ mu wa sinu eto naa.


Ọja Apejuwe

Ọja Tags

Awoṣe AC1010-M5 AC2010-01 AC2010-02 AC3010-02 AC3010-03
Module Oluṣakoso Ajọ AW1000 AW2000 AW2000 AW3000 AW3000
Lubricator AL2000 AL2000 AL2000 AL3000 AL3000
Iwon Port M5 × 0,8 PT1 / 8 PT1 / 4 PT1 / 4 PT3 / 8
Iwọn Iwọn Iwọn Iwọn Iwọn M5 × 0,8 PT1 / 8 PT1 / 8 PT1 / 8 PT1 / 8
Oṣuwọn ti a Rọ (L / Min) 90 500 500 1700 1700
Ṣiṣẹ Media Fisinuirindigbindigbin Air
Ipa Ẹri 1.5Mpa
Ibiti Ofin 0.05 ~ 0.7Mpa 0.05 ~ 0.85Mpa
Ibaramu Ibaramu 5 ~ 60 ℃
Konge àlẹmọ 40 μ m (Deede) tabi 5 μ m (Ti adani)
Epo Lubricating ti a daba Turbine NO.1 Epo (ISO VG32)
Akọmọ (ọkan) Y10T Y20T Y30T
Iwọn titẹ Y25-M5 Y40-01
Ohun elo Ohun elo Ara Aluminiomu Alloy
Ohun elo Agolo PC
Ideri Cup AC1010 ~ AC2010: laisi AC3010 ~ AC5010: pẹlu (Irin)



Awoṣe AC4010-03 AC4010-04 AC4010-06 AC5010-06 AC5010-10
Module Oluṣakoso Ajọ AW4000 AW4000 AW4000 AW5000 AW5000
Lubricator AL4000 AL4000 AL4000 AL5000 AL5000
Iwon Port PT3 / 8 PT1 / 2 G3 / 4 G3 / 4 G1
Iwọn Iwọn Iwọn Iwọn Iwọn PT1 / 4 PT1 / 4 PT1 / 4 PT1 / 4 PT1 / 4
Oṣuwọn ti a Rọ (L / Min) 3000 3000 3000 5000 5000
Ṣiṣẹ Media Fisinuirindigbindigbin Air
Ipa Ẹri 1.5Mpa
Ibiti Ofin 0.05 ~ 0.85Mpa
Ibaramu Ibaramu 5 ~ 60 ℃
Konge àlẹmọ 40 μ m (Deede) tabi 5 μ m (Ti adani)
Epo Lubricating ti a daba Turbine NO.1 Epo (ISO VG32)
Akọmọ (ọkan) Y40T Y50T Y60T
Iwọn titẹ Y50-02
Ohun elo Ohun elo Ara Aluminiomu Alloy
Ohun elo Agolo PC
Ideri Cup AC1010 ~ AC2010: laisi AC3010 ~ AC5010: pẹlu (Irin)

Akiyesi: Oṣuwọn oṣuwọn yẹ ki o wa labẹ titẹ ti 0.7Mpa.

Awoṣe Iwon Port A B C D E F G H J K L M N P
AC1010 M5 × 0,8 58 109.5 50.5 25 26 25 29 20 4,5 7.5 5 17.5 16 38.5
AC2010 PT1 / 8, PT1 / 4 90 164.5 78 40 56.8 30 45 24 5.5 8.5 5 22 23 50
AC3010 PT1 / 4, PT3 / 8 117 211 92.5 53 60.8 41 58.5 35 7 11 7 34.5 26 70.5
AC4010 PT3 / 8, PT1 / 2 154 262.5 112 70 70.5 50 77 40 9 13 7 42.2 26 88
AC4010-06 G3 / 4 164 267 114 70 70.5 50 82 40 9 13 7 46.2 36 88
AC5010 G3 / 4, G1 195 345 115 70 70.5 50 95 45 12 16 10 51 46 98

Akiyesi: Iye B yoo yatọ pẹlu module ṣiṣan oriṣiriṣi, awọn alaye diẹ sii jọwọ kan si awọn tita.
