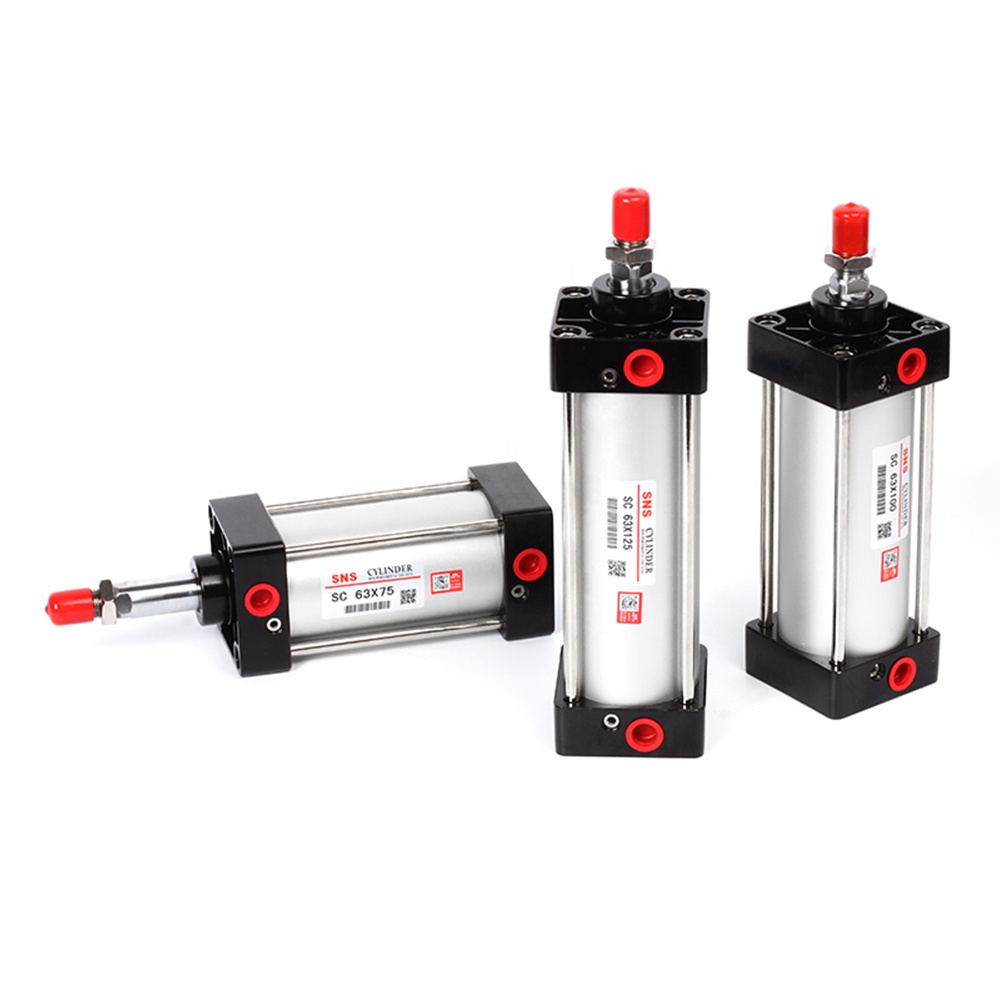

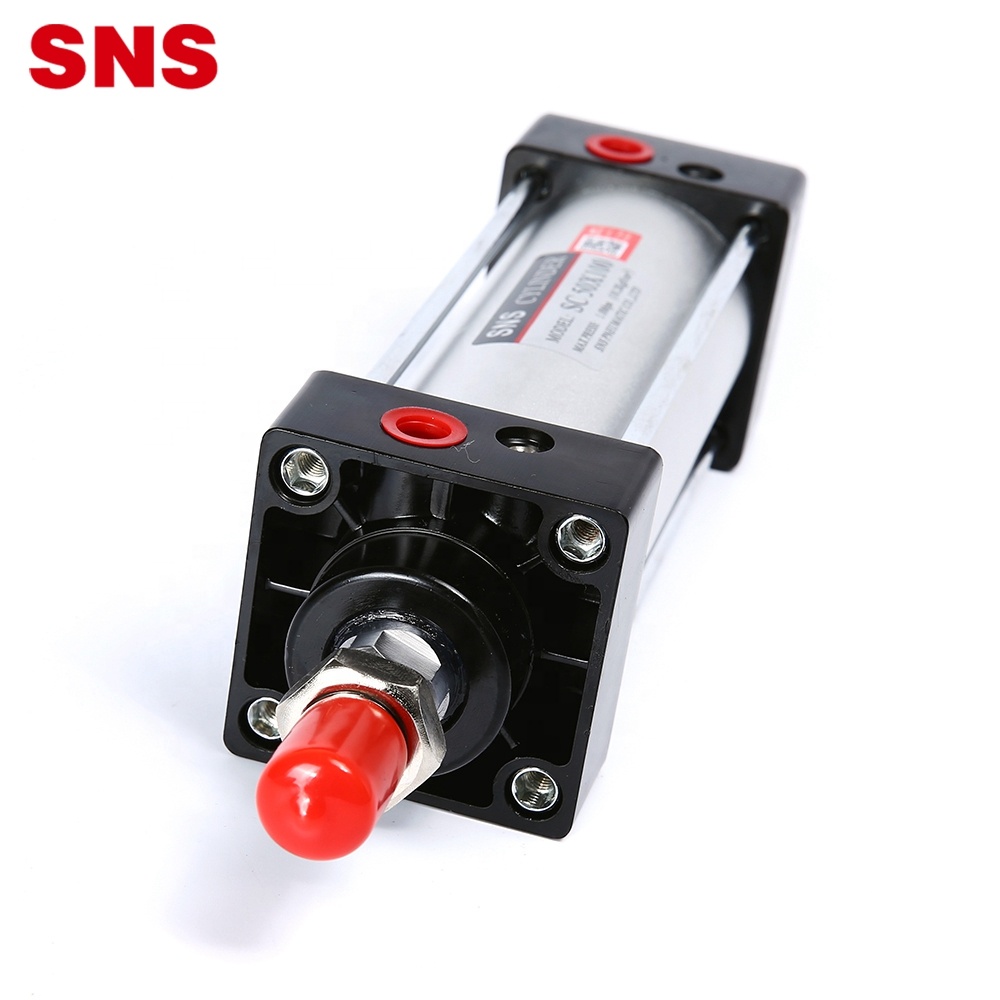

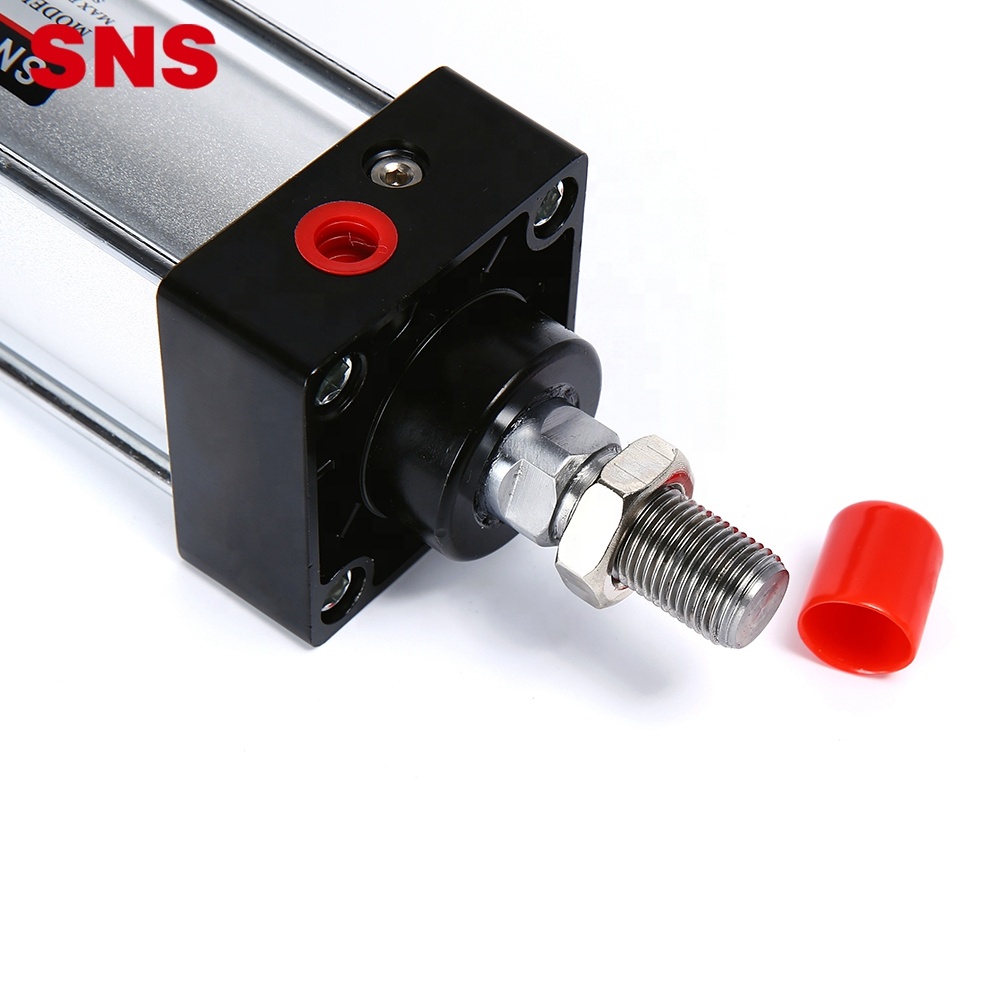

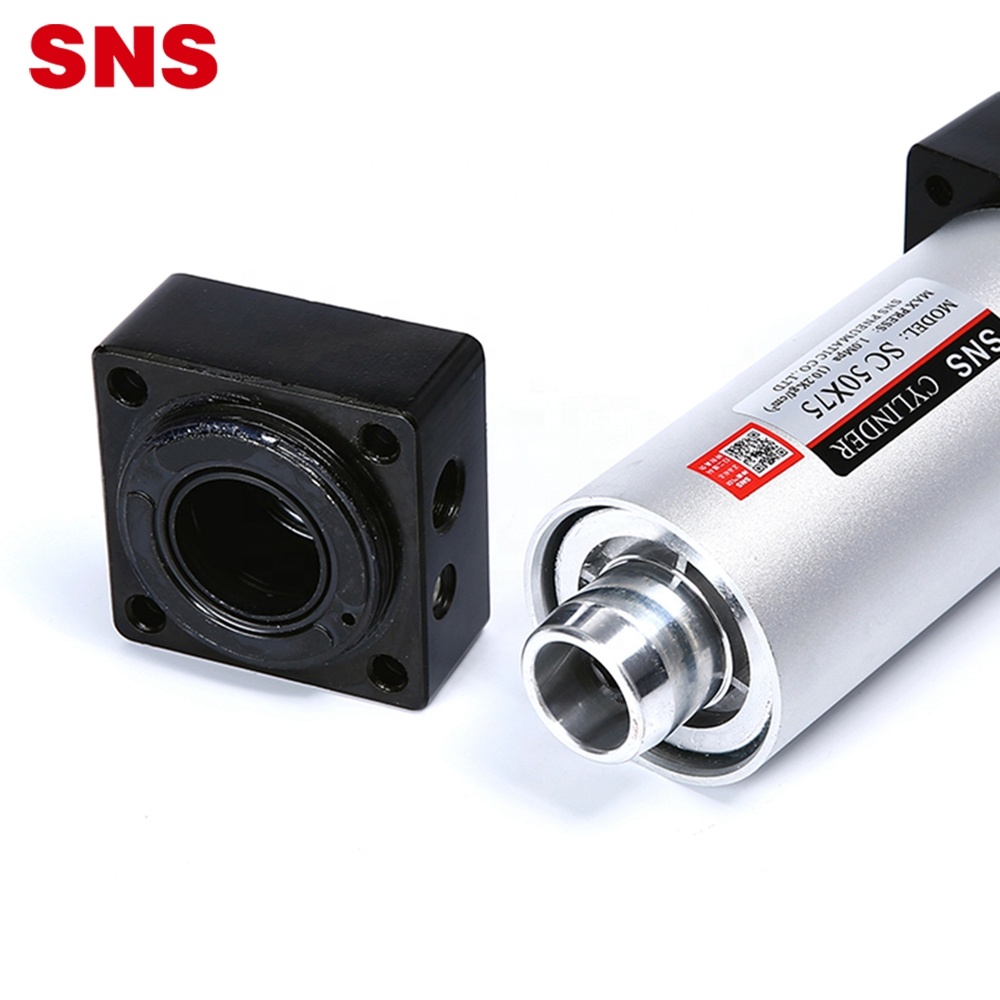

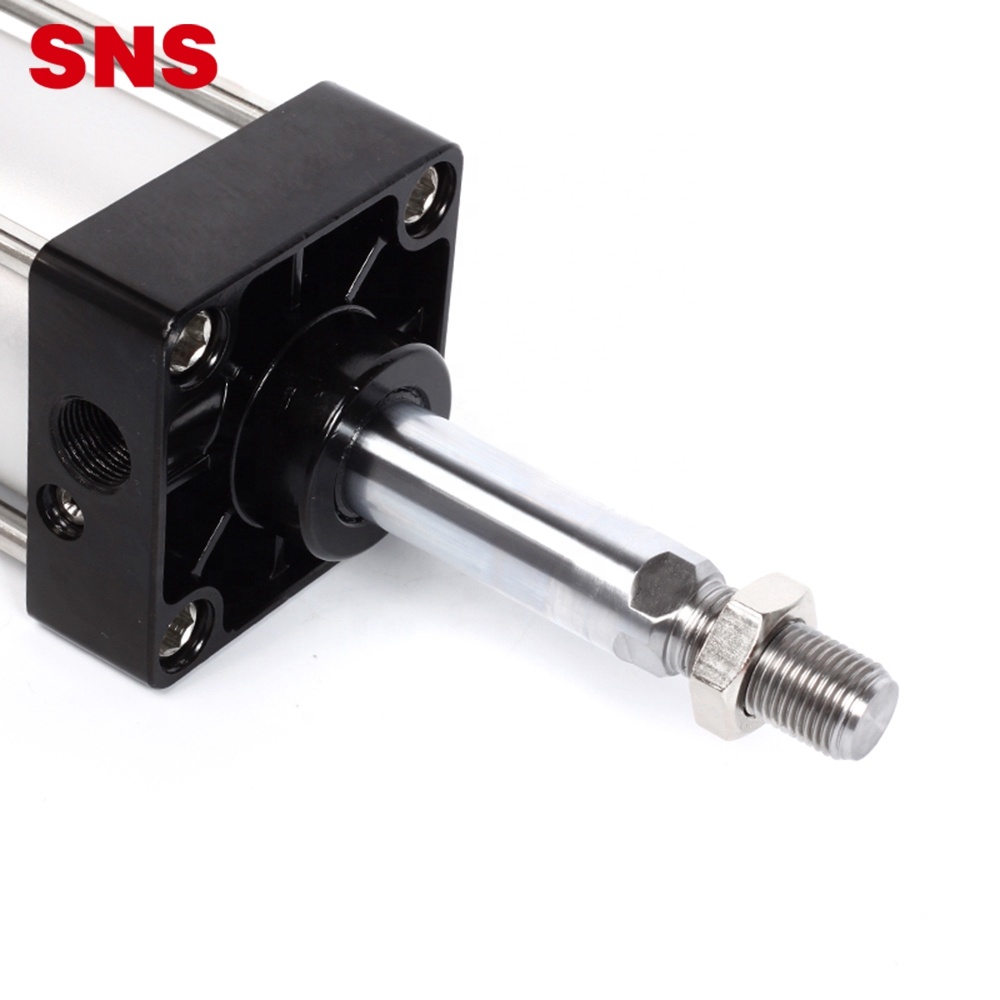

SNS SC Series aluminiomu alloy ilọpo/ẹyọkan iṣe boṣewa pneumatic air silinda pẹlu PT/NPT ibudo Aworan Ifihan

SNS SC Series aluminiomu alloy ilọpo/ẹyọkan iṣe deede pneumatic air cylinder pẹlu ibudo PT/NPT

Apejuwe kukuru:

Nigbati fifuye iṣẹ ba yipada, silinda pẹlu agbara iṣelọpọ lọpọlọpọ yẹ ki o yan.Ṣaaju ki o to somọ silinda si opo gigun ti epo, idoti ti o wa ninu opo gigun ti epo gbọdọ wa ni kuro lati yago fun idoti lati wọ inu silinda naa.Abọde ti a lo ninu silinda yẹ ki o wa ni filtered nipasẹ piston àlẹmọ ati lo ni akọkọ.
1. Silinda ti o ṣe deede ti piston lilẹ gba ọna-ọna-ọna-ọna meji-ọna pataki ti o ṣe pataki, pẹlu iwọn iwapọ ati iṣẹ ipamọ epo.
2. Silinda ti o ṣe deede jẹ silinda iru ọpa ti o fa, ati awọn ideri iwaju ati awọn ideri ti wa ni asopọ pẹlu aluminiomu tube cylinder body pẹlu strut, ti o ni igbẹkẹle to dara.
3. Atunṣe ifipamọ ti silinda boṣewa jẹ iduroṣinṣin.

Fi imeeli ranṣẹ si wa

Alaye ọja

ọja Tags

Ìwọ̀n Igbó (mm)	32	40	50	63	80	100
Ipo iṣe	Ise Meji
Media ṣiṣẹ	Afẹfẹ ti a sọ di mimọ
Ṣiṣẹ Ipa	0.1 ~ 0.9Mpa(1~9kgf/cm²)
Imudaniloju Ipa	1.35MPa (13.5kgf/cm²)
Ṣiṣẹ iwọn otutu Range	-5-70℃
Ipo ifipamọ	adijositabulu
Ijinna idaduro (mm)	24				32
Ibudo Iwon	1/8	1/4		3/8		1/2
Ohun elo ara	Aluminiomu Alloy

Ọpọlọ Of Silinda

Ìwọ̀n Igbó (mm)	Standard Stroke(mm)										O pọju.Ọgbẹ (mm)	Ọkọ Afẹfẹ (mm)
32	25	50	75	100	125	150	175	200	250	300	1000	2000
40	25	50	75	100	125	150	175	200	250	300	1200	2000
50	25	50	75	100	125	150	175	200	250	300	1200	2000
63	25	50	75	100	125	150	175	200	250	300	1500	2000
80	25	50	75	100	125	150	175	200	250	300	1500	2000
100	25	50	75	100	125	150	175	200	250	300	1500	2000
125	25	50	75	100	125	150	175	200	250	300	1500	2000
160	25	50	75	100	125	150	175	200	250	300	1500	2000
200	25	50	75	100	125	150	175	200	250	300	1000	2000
250	25	50	75	100	125	150	175	200	250	300	1200	2000
320	25	50	75	100	125	150	175	200	250	300	1200	2000
400	25	50	75	100	125	150	175	200	250	300	1500	2000

Ìwọ̀n Igbó (mm)	A	A1	A2	B	C	D	E	F	G	H	K	L	O	S	T	V
32	140	187	182	47	93	28	32	15	27.5	22	M10x1.25	M6x1	G1/8	45	33	12
40	142	191	185	49	93	32	34	15	27.5	24	M12x1.25	M6x1	G1/4	50	37	16
50	150	207	196	57	93	38	42	15	27.5	32	M16x1.5	M6x1	G1/4	62	47	20
63	153	210	199	57	96	38	42	15	27.5	32	M16x1.5	M8x1.25	G3/8	75	56	20
80	183	258	243	75	108	47	54	21	33	40	M20x1.5	M10x1.5	G3/8	94	70	25
100	189	264	249	75	114	47	54	21	33	40	M20x1.5	M10x1.5	G1/2	112	84	25
125	242	339	314	100	146	60	68	32	40	54	M27x2	M12	G1/2	140	110	32
160	323	480	441	152	171	70	99	53	45	72	M36x2	M16	G1/2	180	145	40
200	338	-	-	154	184	75	99	55	50	72	M36x2	M16	G1/2	220	180	40
250	384	-	-	189	195	92	119	70	50	84	M42x2	M20	G3/4	280	225	50
320	431	-	-	221	210	110	136	85	55	96	M48x2	M24	G3/4	350	280	60
400	516	-	-	261	255	150	136	125	55	100	M56x4	M27	G1	435	350	90
